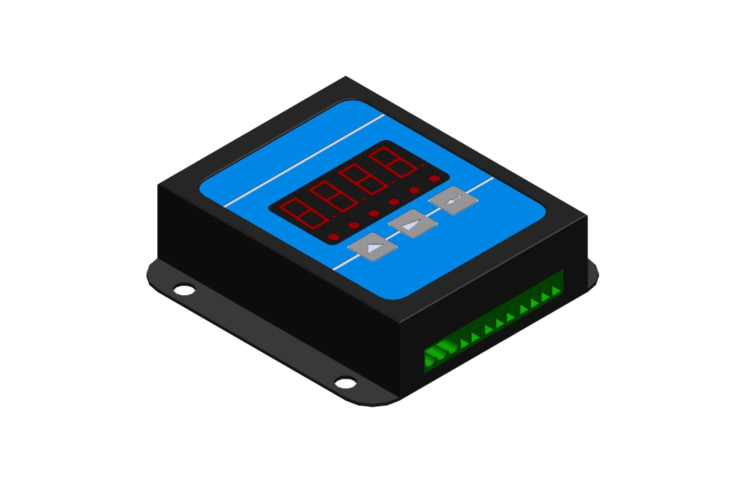

Indicator EOS-3
Indicator EOS-3
Full Scale Input Signal:
-11,7…+11,7 mV
(-3,9…+3,9 mV/V)
Loadcell Excitation Voltage:
3,0 ± 3% Vdc (typ.)
Number of Loadcells:
8x350 Ohm / 16x700 Ohm
System Linearity:
±10 ppm -1 (typ.)
System Input Error:
10 μV (typ.)
System Offset Drift:
15 nV/°С (typ.)
System Gain Drift:
7 ppm-1 /°С (typ.)
Power Supply:
24 +/-10% Vdc
Fusing:
1,10А resettable
Power Consumption:
5W (max.)
Operating Temperature:
-10…+40°С
Storage Temperature:
-20…+50°С
Operating Humidity:
0-90% at 20°С
Enclosure Dimensions:
9.0 x 9.0 x 2.8 cm
Indicator Net Weight:
0,32 kg
Download files:
KITS ADVANTAGES
01
02
The level of dust and moisture protection IP65 ensures working capacity in dusty and humid rooms.
03
The rubber damper design protects the sensors from dynamic overload and ensures that they are equally loading action (but not for all models).
04
The device uses industrial shielded cables and chokes with kink-protected fittings.
05
Unification and standardization. Ease of installation and quick replacement of components.
06
Possibility of choosing the types of sensors for different places of their installation and types of connectors for connecting the thermometric sensor.
07
The possibility of factory calibration of the finished product.
08
Electronic base of technical documentation and commissioning instructions.
09
An ability to customize the device as a whole and its individual components.
