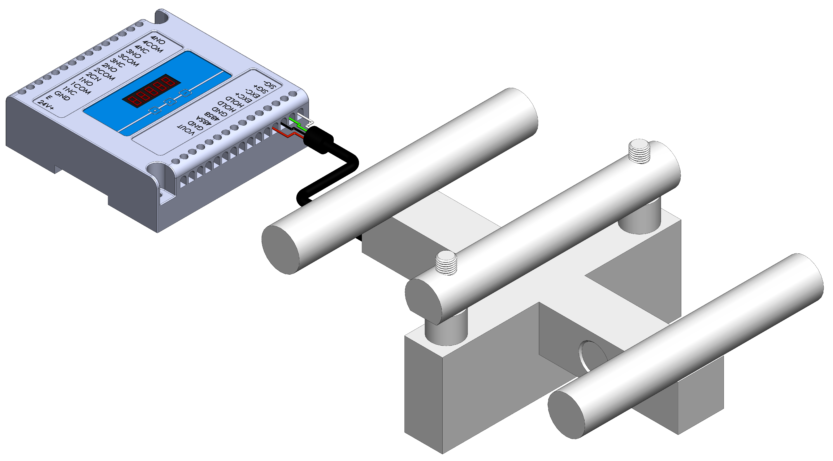

Elevator overload control system EOS-R1
Elevator overload control system EOS-R1
Capacity:
3000kg or 4500kg
Maximum short-time overload:
4500kg or 6750kg
Suitable rope diameter:
6-23mm
Accuracy class:
0,5%
Quantity of relay outputs:
3
Levels of relay outputs:
15 kg (presence of a passenger)
90% (move without stopping)
110% (overload)
Supply voltage:
~230±20 V 50±1 Hz
-24±4 V (option)
Working temperature range:
-10...+50°С
Protection class:
- Indicador IP20
- Load cells IP67
Warranty:
3 years
