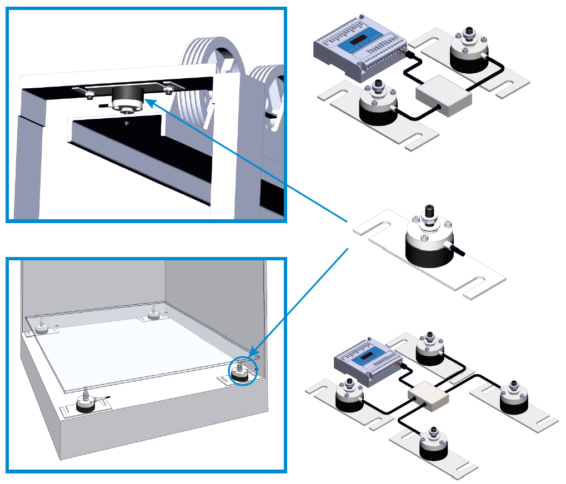

Elevator overload control system EOS-CS
Elevator overload control system EOS-CS
Capacity:
2000kg
4000kg
Maximum short-time overload:
6000kg
12000kg
Load cell capacity:
1000kg
Accuracy class:
0,5%
Quantity of relay outputs:
3
Levels of relay outputs:
15 kg (presence of a passenger))
90% (move without stopping)
110% (overload)
Supply voltage:
~230±20V 50±1Hz
-24±4V (option)
Working temperature range:
-10...+50°С
Protection class:
- Indicator IP20
- Load cells IP67
Warranty:
3 years
Download files:
KITS ADVANTAGES
01
02
The level of dust and moisture protection IP65 ensures working capacity in dusty and humid rooms.
03
The rubber damper design protects the sensors from dynamic overload and ensures that they are equally loading action (but not for all models).
04
The device uses industrial shielded cables and chokes with kink-protected fittings.
05
Unification and standardization. Ease of installation and quick replacement of components.
06
Possibility of choosing the types of sensors for different places of their installation and types of connectors for connecting the thermometric sensor.
07
Possibility of choosing the types of sensors for different places of their installation and types of connectors for connecting the thermometric sensor.
08
Electronic base of technical documentation and commissioning instructions.
09
An ability to customize the device as a whole and its individual components.
