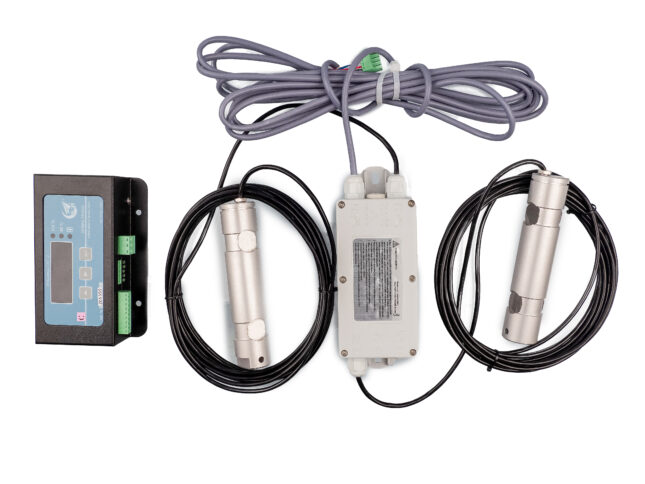

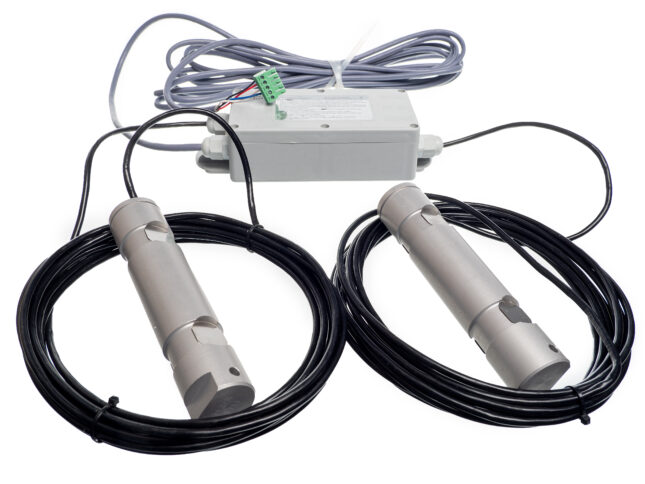

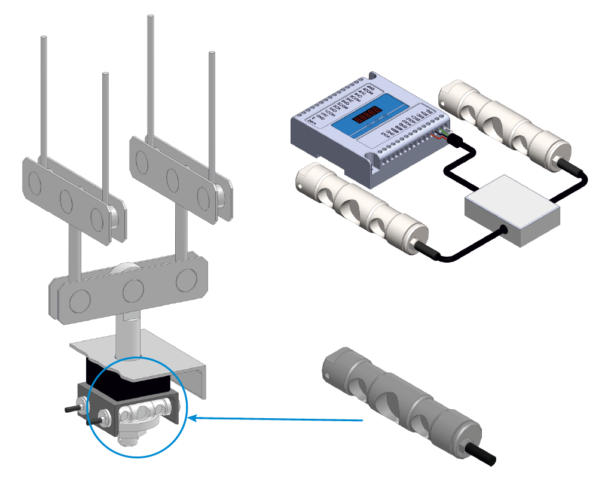

Elevator overload control system EOS-A
Elevator overload control system EOS-A
Capacity:
2000kg
Maximum short-time overload:
3000kg

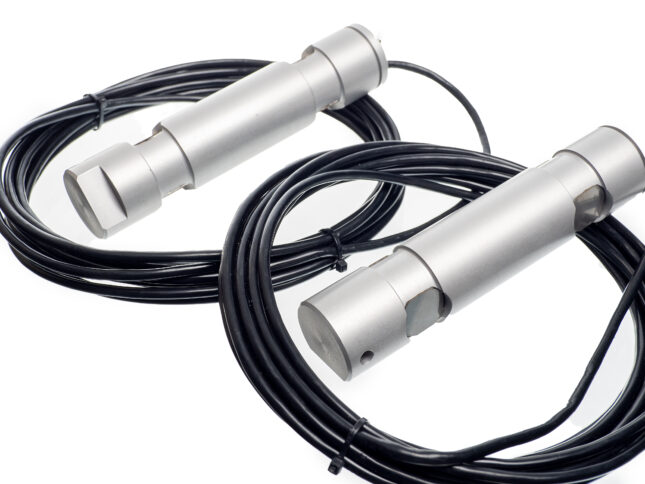

Load cell capacity:
1000kg
Accuracy class:
0,5%
Quantity of relay outputs:
3
Levels of relay outputs:
15 kg (presence of a passenger)
90% (move without stopping)
110% (overload)
Supply voltage:
~230±20V 50±1Hz
-24±4V (option)
Working temperature range:
-10...+50°С
Protection class:
Indicator IP20
Load cells IP67
Warranty:
3 years
